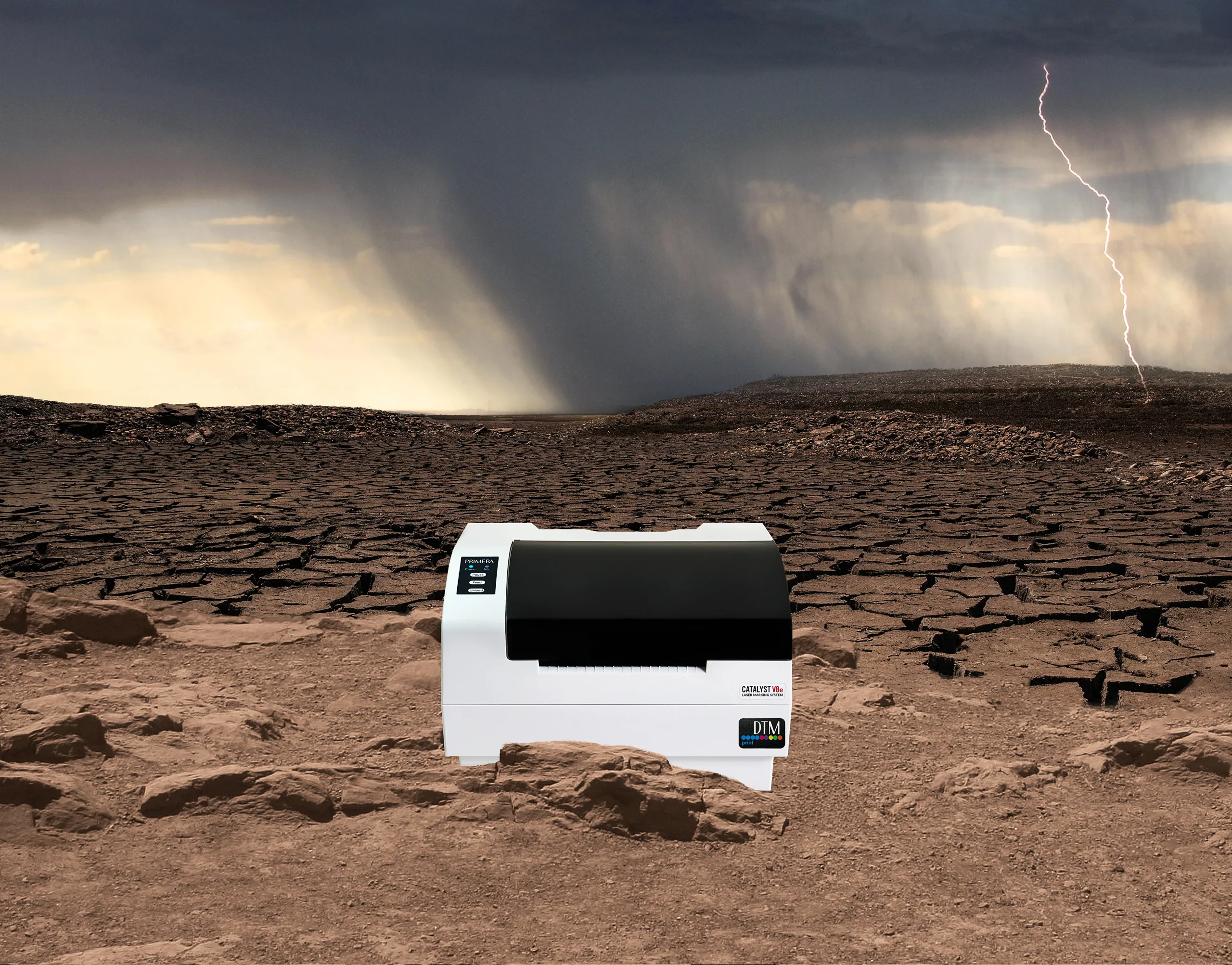

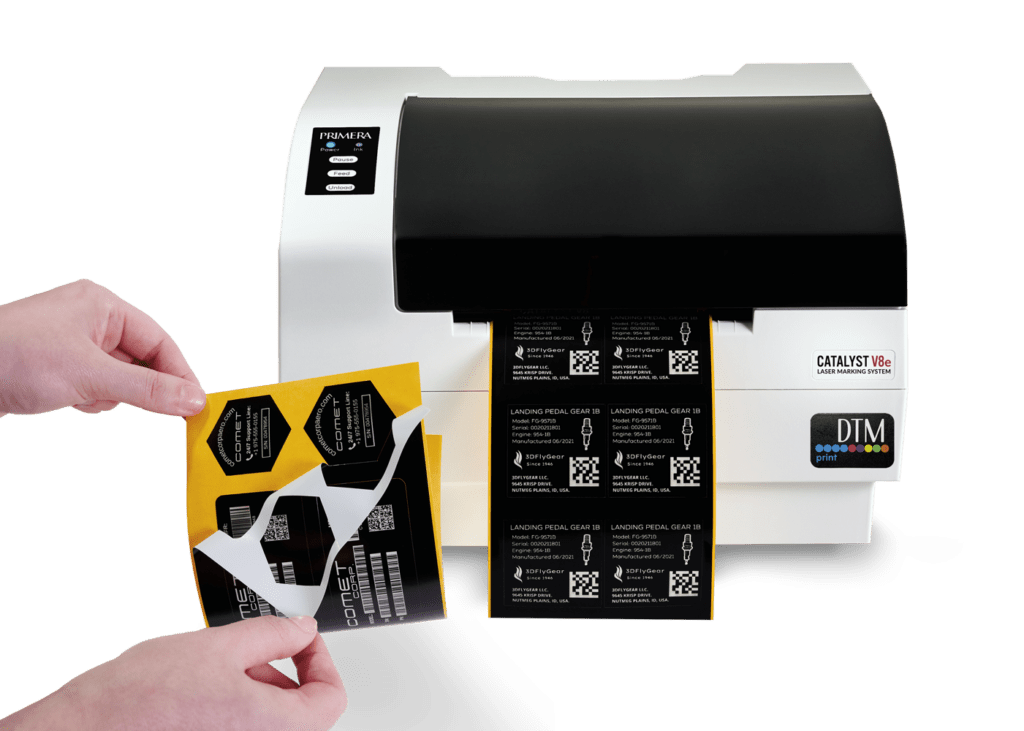

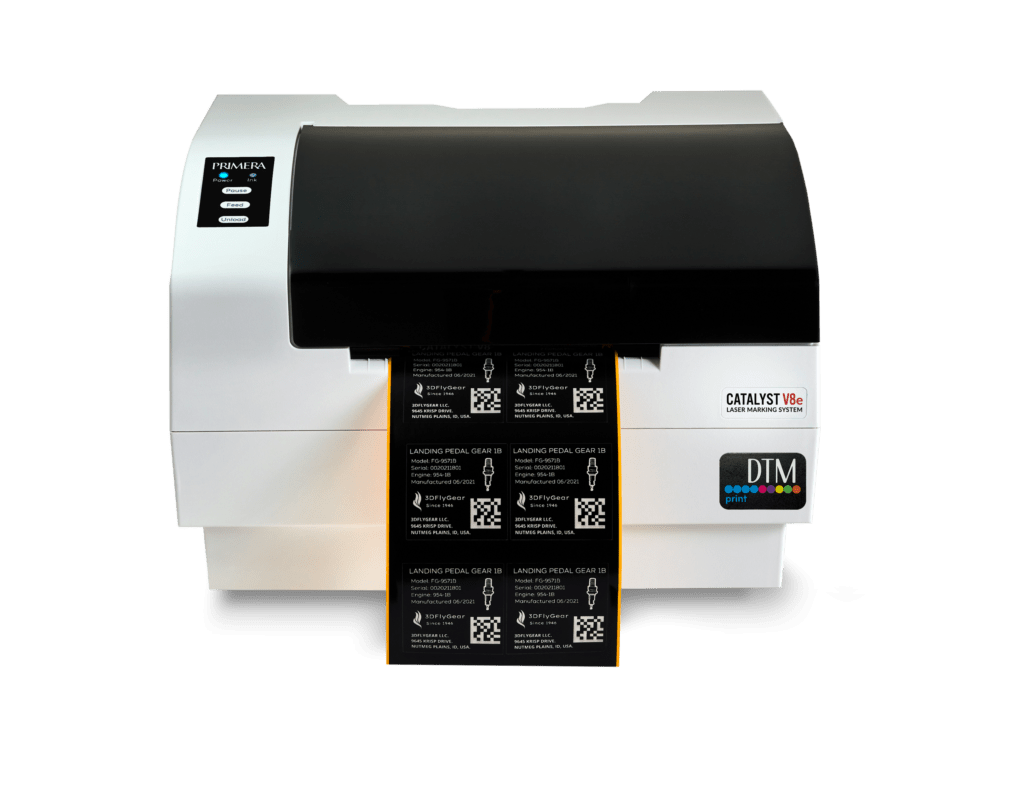

Meet the Catalyst
A precision marking and die-cutting system for high-resistance labels designed to withstand harsh outdoor environments.

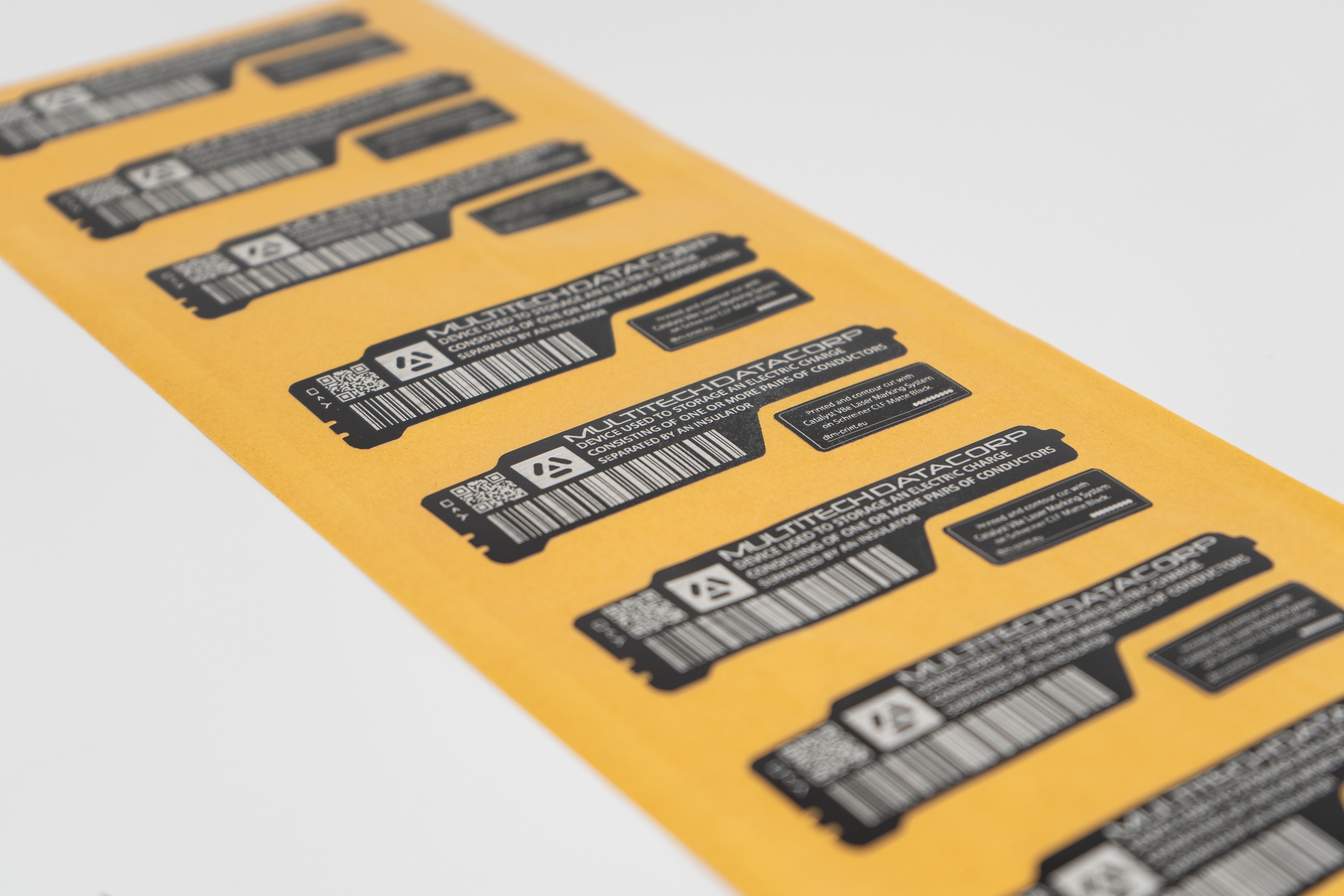

The Catalyst V8e combines marking onto highly durable, pre-laminated label substrates with a built-in digital die-cutting system to produce labels of any shape or size.
Produce labels for harsh service applications such as …
- UDI labels for medical devices

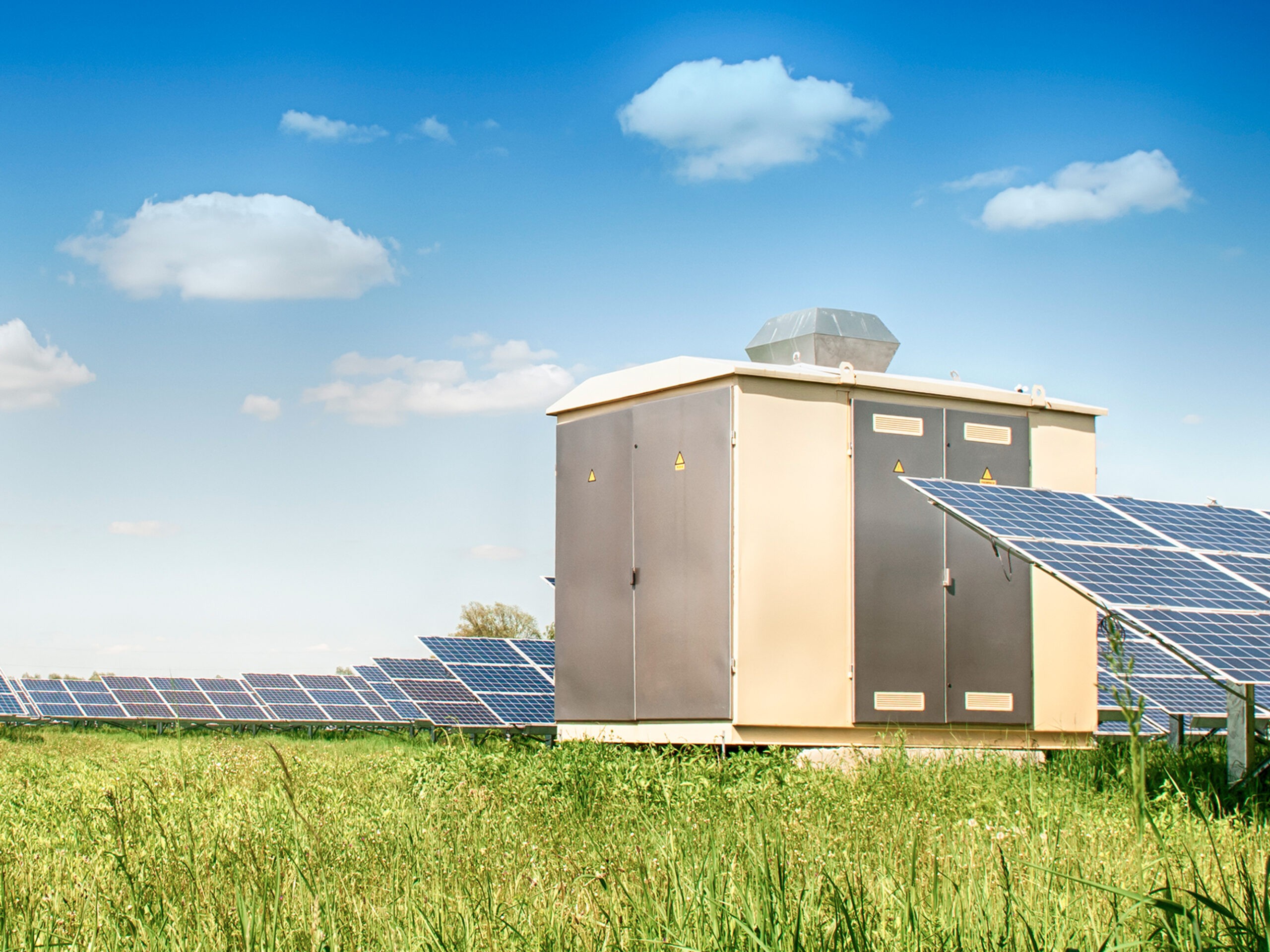

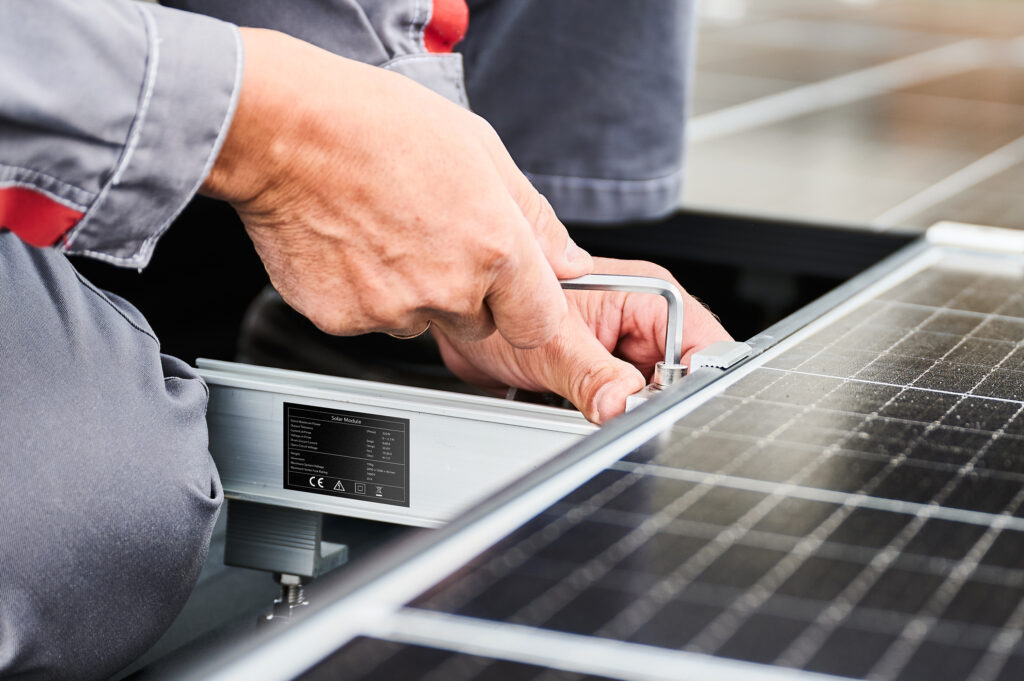

- Aerospace and solar panels

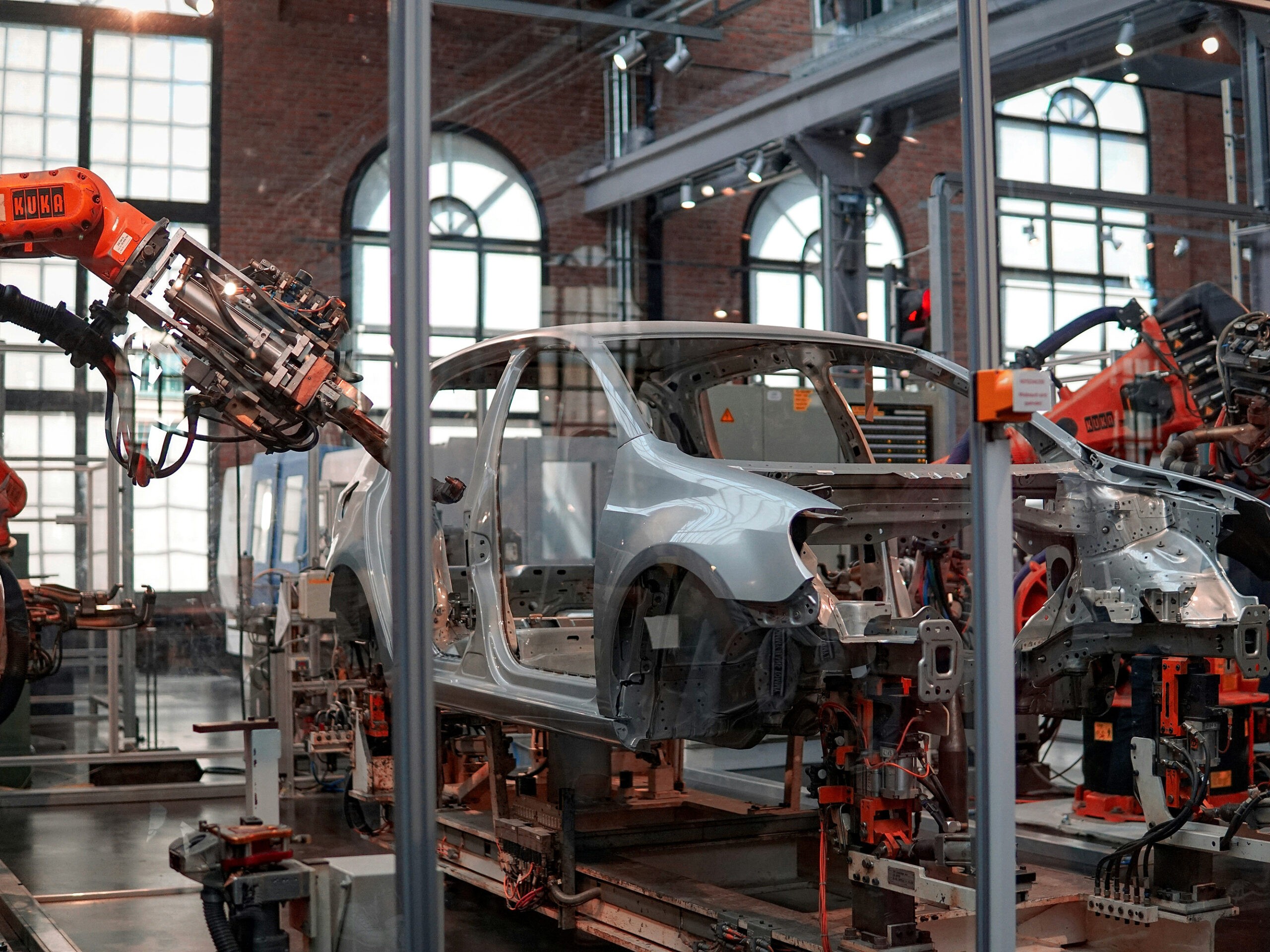

- Vehicle and marine spare parts
- Asset tags
- Barcode / QR code labels
- Warning labels
- Instruction panels
… and other industrial labels that need to withstand harsh environmental conditions for many years.
for optimum protection
is converted by means of a laser beam
shows up in the corresponding colour
with individual adhesive strength
Unique Materials & Imaging Technology
The Catalyst V8e uses innovative fibre-coupled laser diodes to image onto durable Schreiner® Color Laser Film (CLF), which is pre-laminated for maximum label resistance to environmental factors. The lamination helps to prevent the label degradation due to environmental damage and chemical exposure.
Unlike traditional laser label systems, the Catalyst V8e features phase-change technology to eliminate smoke and fumes during imaging. This makes it ideal for indoor desktop use without the need for costly extraction systems and trained operators.
A More Sustainable Solution than Thermal Transfer
The other way to produce on-demand, less durable labels is the lamination of a resin thermal transfer print onto a polyester label.
However, this method is more complicated, labour-intensive and less environmentally friendly. First, ribbons must be purchased and kept in inventory. Afterwards a laminate label must be accurately applied by hand, leaving liner waste. The print ribbon and liner must be disposed of properly. There may also be a security risk as the waste ribbon contains the negative image of the print. Thermal transfer ribbons are difficult to recycle and often end up in landfill. Therefore, Catalyst’s ribbon-free technology is a far more sustainable solution for the planet.
Industries
Durable Product Marking
Create highly durable and weather-resistant labels with ease, a cost-effective solution that simplifies the marking process.
The Labels withstand harsh outdoor weather conditions for many years
Extreme sunlight / UV exposure, extreme temperatures from cryogenic cold to glowing heat, high abrasion including blowing sand and dirt, tampering due to available tamper-evident features and chemicals (such as grease, oils, gasoline and many other chemicals).
Glowing Heat
Catalyst V8e labels are designed to withstand extremely high temperatures, making them suitable for applications where labels must remain intact and readable under intense heat.
Cryogenic Cold

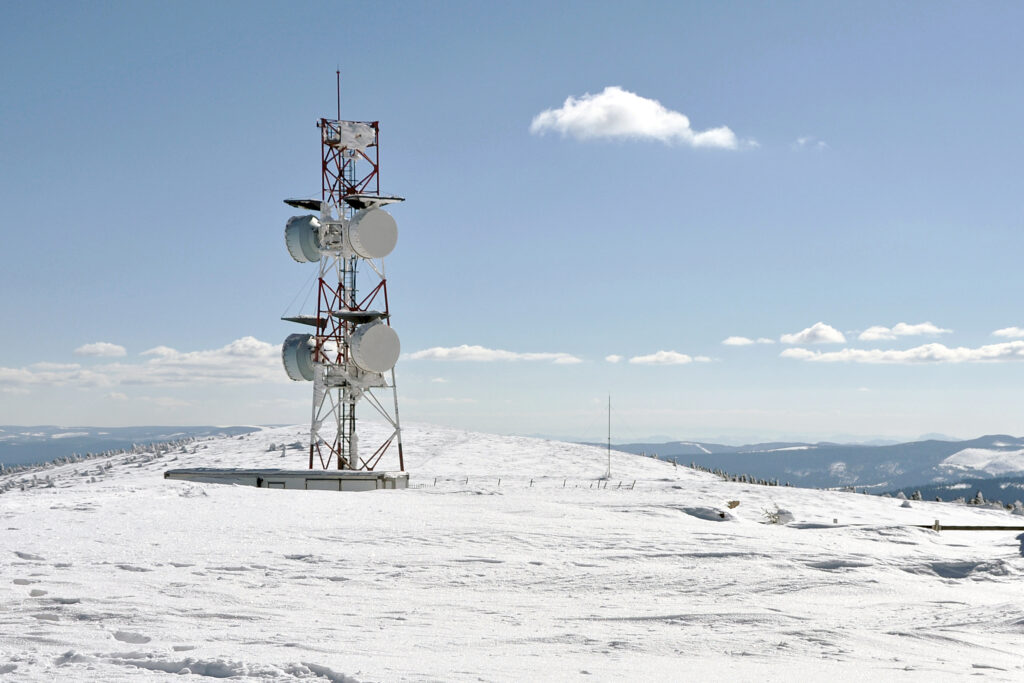

Labels produced with the Catalyst V8e endure extremely low temperatures, perfect for applications in cryogenic environments or where items are exposed to subzero conditions.
Extreme Sunlight / UV Exposure
Built to resist prolonged UV exposure, Catalyst V8e labels maintain durability and readability even after long periods in direct sunlight.
Harsh Outdoor / Weather Conditions
Catalyst V8e labels are engineered for rugged environments, providing reliable adhesion and readability despite rain, wind and other severe weather conditions.
Low Cost & Easy to Use
Explore the Catalyst V8e on YouTube!
Discover everything you need to know about the Catalyst V8e with our dedicated YouTube playlist. From in-depth technical breakdowns to real-world performance tests.
Color Laser Film by Schreiner
Schreiner Color Laser Film (CLF) label stock is the perfect solution for demanding industrial applications. This premium polyester composite is designed for the high level of parts marking and identification, ensuring excellent adhesion and performance even in the harshest conditions.

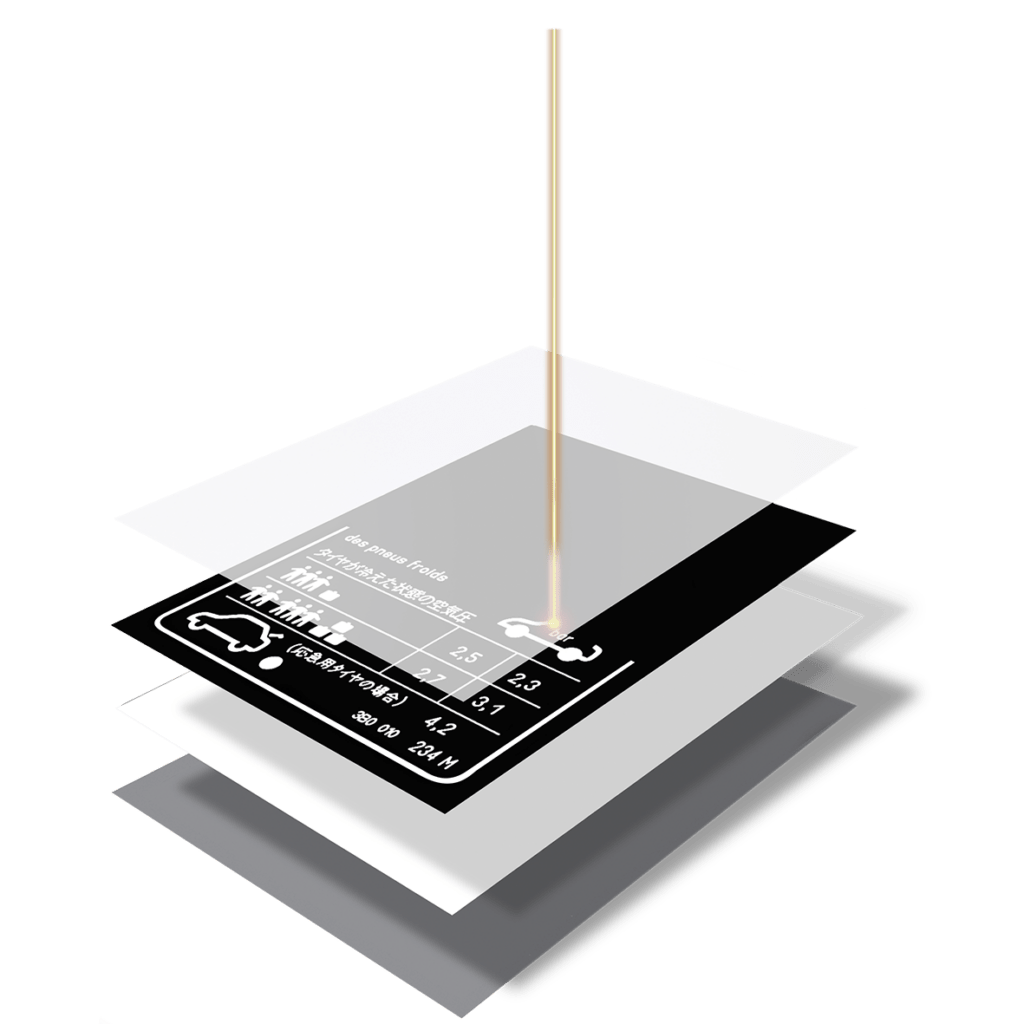

How Does It Work?

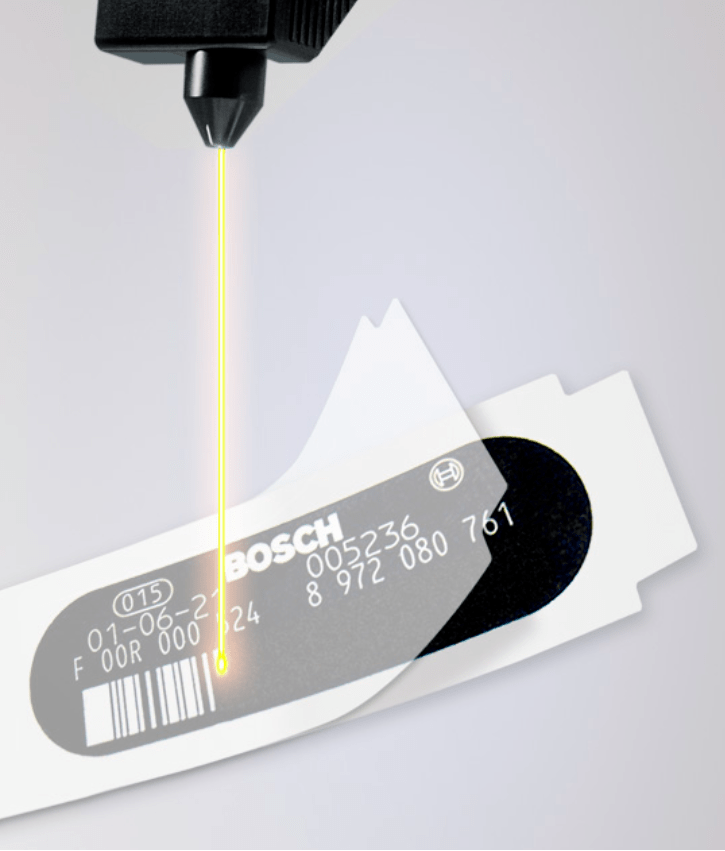

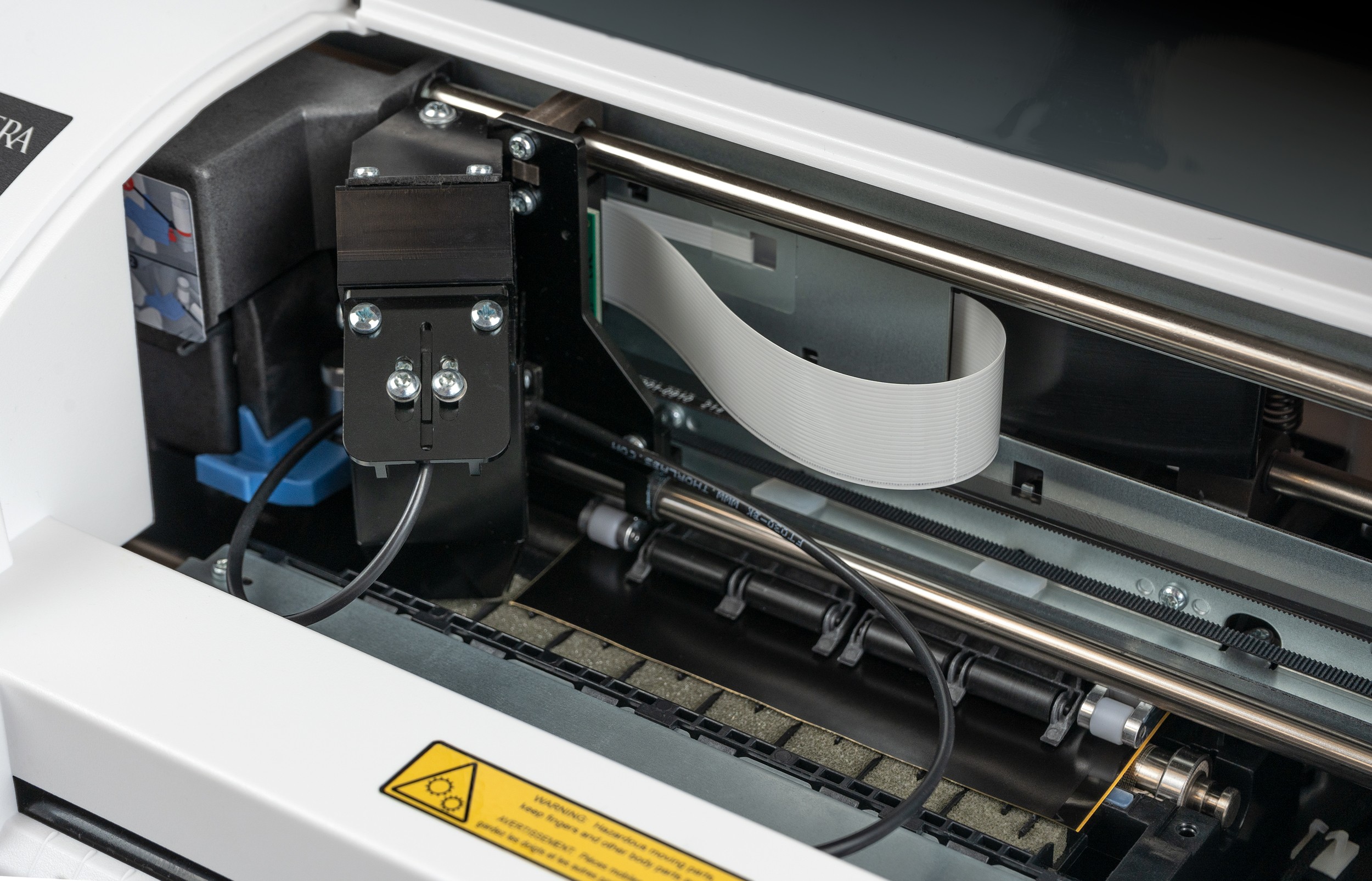

The Catalyst V8e penetrates the transparent laminate layer of each CLF label without damaging or contacting it. The reference layer (white) appears. This conversion does not release any particles or gases, reducing the need for cleaning and maintenance of the laser equipment, resulting in smokeless and emission-free marking.
Available Sizes
For maximum flexibility, DTM Print offers continuous material for contour cutting as well as pre die-cut film labels in various sizes to meet your requirements. Pre die-cut labels from DTM Print are completely emission-free and perfect for clean room and controlled zone applications.
Contour cutting of continuous material produces very low emissions. Another advantage is that storage costs are reduced as you don’t need to stock label rolls in different sizes.

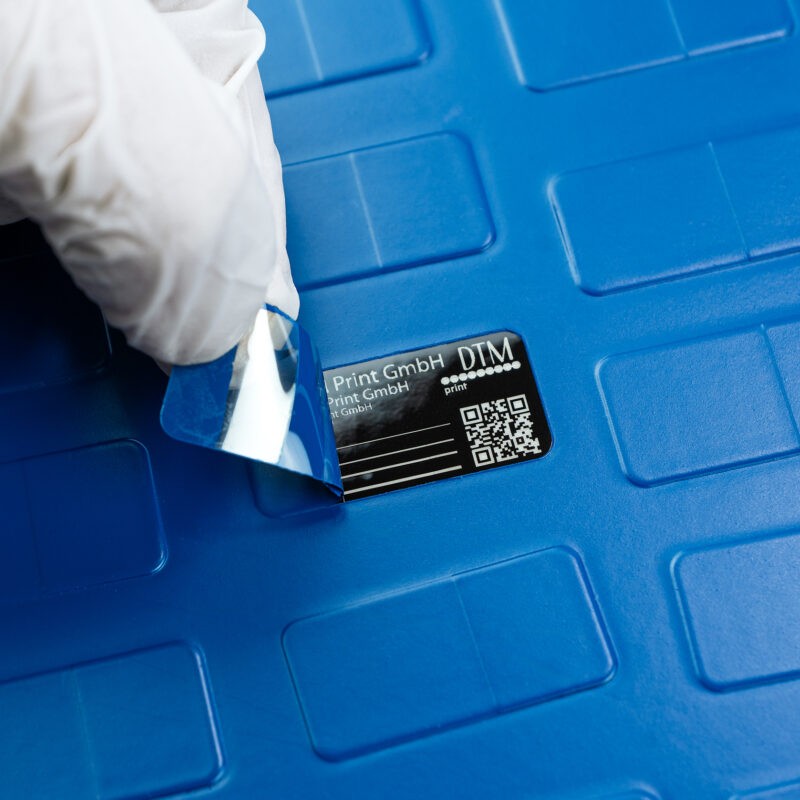

Paint Mask Label
For precise painting processes, DTM Print offers the Schreiner CLF with paint mask. The labels are intended for use with the Catalyst V8e to ensure that information is readable both before and after the painting or coating process. The paint mask label has multiple layers, which enable clean and precise paint edges and prevent overspray or paint bleed. This solution increases the quality of the finished product and improves the efficiency of complex production processes by reducing the need for manual rework.
